1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles

Brand Name : HC

Model Number : HC 30 - 190 - 950

Certification : CE

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Delivery Time : 25-30 days

Packaging Details : Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.

Material Type : PPGI/GI

Material Thickness : 0.3-0.6mm

Material Width : 1200mm

Rolller Stations : 15Stations

Roller & Shaft Material : 45# Steel Quenching and Plating

Diameter of Shaft : Φ70mm

Cutter Material : CR12

Drive Type : Chain Drive

Speed : 4m/min

Total Power : 5.5+5.5KW

Voltage : 380V 50Hz 3Phases

Contact Now

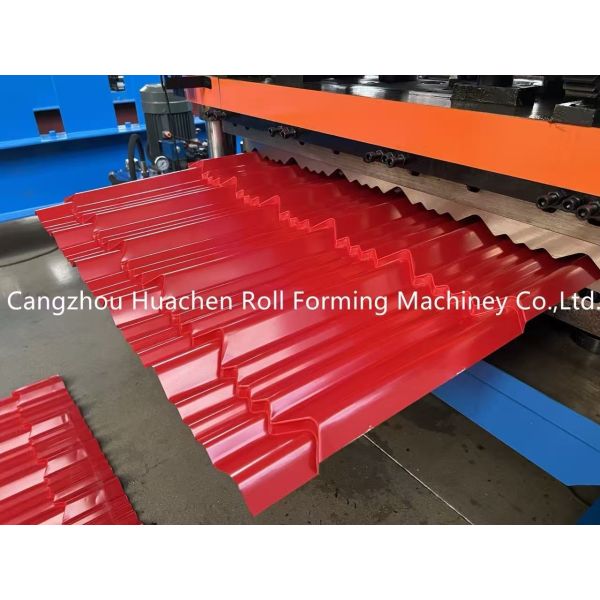

PPGI/GI Roof Tile Manufacturing Machine - Material Width 1200mm, 18 Rollers

Rib 40 MM Glazed Tile Roll Forming Machine Material Width 1220 mm for PPGI and GI materials.

Main Technical Parameters

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1200mm
Roller Stations	15Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	4m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component & Technical Parameters

1200mm Material Width 18 Rollers Glazed Tile Roll Forming Machine with 5.5KW Power for PPGI/GI Roof Tiles

5T Manual Decoiler

This part is used to support coil and make the coil rotate. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.

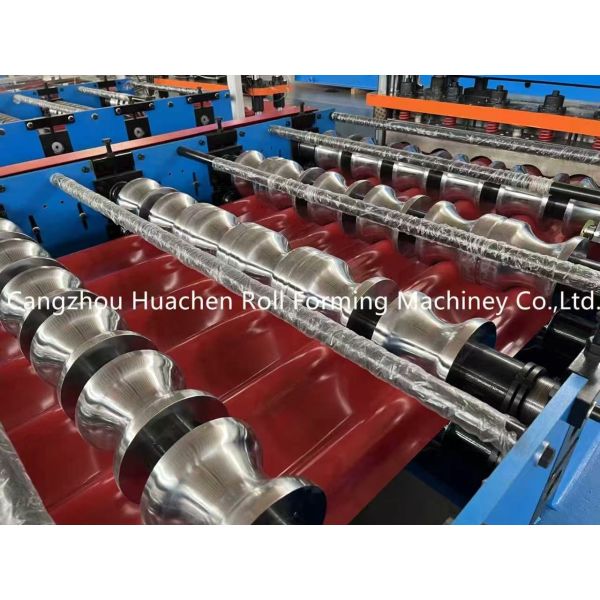

Shaft & Roller

Material: 45# Steel with quenching and plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch sheets during operation.

Hydraulic Pump Station

Drives the cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

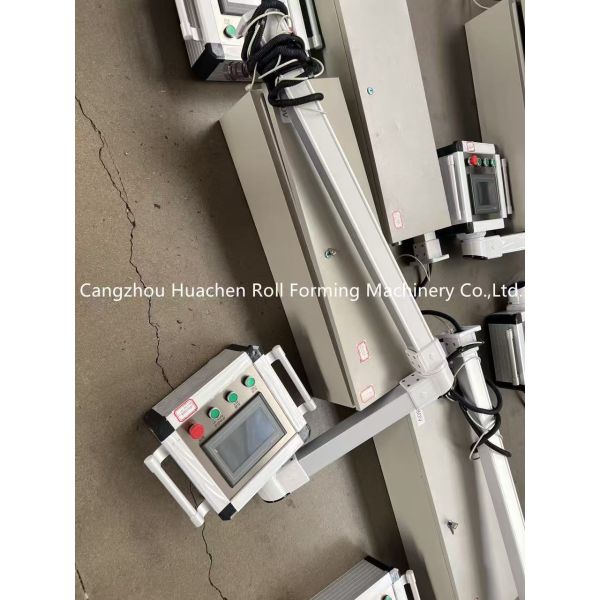

Touch Screen Control Cabinet

Features automatic and manual modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system.

Electrical Component Brands:

VFD: Delta
Circuit breaker: Delixi
Contactor: Delixi
Relay: Xinling
PLC: Delta
Transformer: Delixi

Pressing Section & Cutter

Blade and pressing mould material: CR12. Features high strength, excellent hardenability, and superior wear resistance.

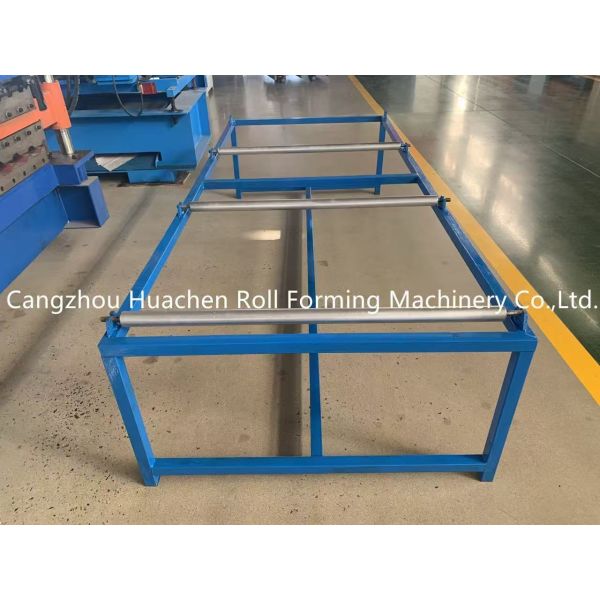

Output Table

Used to collect formed products. Equipped with rollers to facilitate product forwarding without scratching.

Spare Parts

Chains: 2 Sets

Solenoid Valve: 1 Set

Travel Switch: 2 Sets

Open-End Wrenches: 2 Sets

Hexagon Wrench: 2 Sets

Counter: 1 Set

Wrench: 2 Sets

Oil Seals: 1 Set

Automatic Control System Operation

Inverter controls host's positive and negative running with speed controlled by high-speed/low-speed switch. Always set to high speed in automatic operation.
Oil pump switch controls start/stop of oil pump. Automatically starts to provide pressure for hydraulic system.
Before starting operation, turn on oil pump to provide hydraulic system pressure.
After oil pump starts, verify pump running direction matches arrow direction. If not, change any three of the three phases in pump motor.
Lower cut and return buttons control cutter operation. If buttons are unresponsive, check hydraulic oil level and add oil if necessary.

Technical Support & Troubleshooting

Pulse Length Measurement Issues

If setting value remains unchanged, produced plate size should be consistent. Pulse coefficient can be adjusted if needed.

If plate sizes vary:

Check counter wheels for proper installation, slipping, or dangling
If no issues found, counter may be damaged - test by manually turning counter 10 times and recording value

Automatic Cutter Lift Failure

Check oil pump filter for blockage
Inspect oil pump and motor connection keys for damage
Check solenoid valve for sticking and directional issues

Cutter Cutting Fault Solutions

Knife keeps going down with pump blocked:

Check lower limit adjustment or switch damage
Solenoid valve stuck - turn off pump, press cut button until click sound, then turn on pump to raise knife

Knife keeps going up with pump blocked:

Check upper limit adjustment or switch damage
Verify K1 and K2 connections
Solenoid valve stuck - turn off pump, press cut button until click sound, then turn on pump to raise knife

Product Tags:
